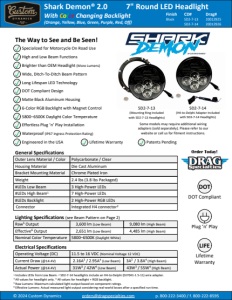

Long Lifespan LED Technology Specialized for Motorcycle On Road Use DOT Compliant Design The Way to See and Be Seen! 1 Includes LEDs from Low Beam. 2 SD2-7-14 headlights include an H4-to-Delphi (DJ7041-1.5-11) wire adapter. 3 All values for headlight only. 4 All values for headlight + RGB backlight. 5 Raw Lumens: Maximum calculated light output based on component ratings. 6 Effective Lumens: Actual measured light output considering real-world losses after a specified run time. High and Low Beam Functions Wide, Ditch-To-Ditch Beam Pattern Matte Black Aluminum Housing 6-Color RGB Backlight with Magnet Control Engineered in the USA Raw5 Output Effective6 Output 5800–6500K (Daylight White) 3,600 lm (Low Beam) 2,651 lm (Low Beam) Nominal Color Temperature Lighting Specifications (see Beam Pattern on Page 2) 9,080 lm (High Beam) 4,485 lm (High Beam) Operating Voltage (DC) Current Draw (@14.4V) 11.5 to 16 VDC (Nominal Voltage 12 VDC) 2.16A3 / 2.95A4 (Low Beam) Actual Power (@14.4V) 31W3 / 42W4 (Low Beam) Electrical Specifications 3A3 / 3.8A4 (High Beam) 43W3 / 55W4 (High Beam) Patents Pending Lifetime Warranty Waterproof (IP67 Ingress Protection Rating) 5800–6500K Daylight Color Temperature Effortless Plug ‘n’ Play Installation Brighter than OEM Headlight (More Lumens) Some models may require additional wiring adapters (sold separately). Please refer to our website or call us for fitment instructions. SD2-7-13 (Mounting Ring Included with SD2-7-13 Headlights) SD2-7-14 (H4-to-Delphi Adapter Included with SD2-7-14 Headlights) General Specifications Outer Lens Material / Color Bracket Mounting Material Weight Polycarbonate / Clear Chrome Plated Iron 2.4 lbs (3.8 lbs Packaged) #LEDs Low Beam Housing Material Die Cast Aluminum #LEDs High Beam1 Connector Integrated H4 connector2 3 High-Power LEDs 7 High-Power LEDs #LEDs Backlight 2 High-Power RGB LEDs Lifetime Warranty LIFE Plug ‘n’ Play DOT DOT Compliant Shark Demon® 2.0 7" Round LED Headlight With Color Changing Backlight (Orange, Yellow, Blue, Green, Purple, Red, Off) CD# SD2-7-13 SD2-7-14 Finish Black Drag# 20012925 20012926 Order Today! © 2024 Custom Dynamics p. 800-222-3400 / f. 800-222-8595 orders@dragspecialties.com
167.9mm (6.61") Beam Patterns 0m 10m 20m –20m –98ft 0ft 33ft 66ft 0m High Beam Low Beam –30m –10m 30m 50m 100m 150m 200m 250m 300m 164ft 328ft 492ft 656ft 820ft 984ft –66ft –33ft 98ft 0ft 0m 10m 20m –20m –98ft 0ft 33ft 66ft –30m –10m 30m –66ft –33ft 98ft CD# SD2-HL-W Finish Black Drag# 20012792 165.1 mm (6.50 in) 64.0 mm (2.50 in) 180.1 mm (7.09 in) 201.1 mm (8.27 in) 176 ± 1.0 mm (6.93 ± 0.04 in) 103.1 ± 1.0 mm (4.05 ± 0.04 in) Mounting Ring Dimensions (SD2-7-13 Only) Headlamp Dimensions 164ft 328ft 0ft 0m 50m 100m 10m 35m 55m 20m 120m 290m (33 ft) (115 ft) (180 ft) (65 ft) (394 ft) (951 ft) 200 lux 10 lux 1 lux 300 lux 10 lux 1 lux = = = = = = 51.1 ± 1.0 mm (2.01 ± 0.04 in) Shark Demon® 2.0 7" Round LED Headlight With Color Changing Backlight (Orange, Yellow, Blue, Green, Purple, Red, Off) CD# SD2-7-13 SD2-7-14 Finish Black Drag# 20012925 20012926 Order Today! © 2024 Custom Dynamics p. 800-222-3400 / f. 800-222-8595 orders@dragspecialties.com
2 Raw Lumens: Maximum calculated light output based on component ratings. 3 Effective Lumens: Actual measured light output considering real-world losses after a specified run time. Long Lifespan LED Technology Specialized for Motorcycle On Road Use DOT Compliant Design The Way to See and Be Seen! 1 Includes LEDs from Low Beam. High and Low Beam Functions Wide, Ditch-To-Ditch Beam Pattern Gloss Black Aluminum Housings Durable Polycarbonate Clear Lens Engineered in the USA Shark Demon® 2.0 Universal LED Headlight CD# SD2-HL-W Finish Black Drag# 20012792 Patents Pending Lifetime Warranty Waterproof (IP67 Ingress Protection Rating) 5800–6500K Daylight Color Temperature Brighter than OEM Headlights (More Lumens) Lifetime Warranty LIFE DOT Compliant DOT Waterproof Operating Voltage (DC) Current Draw (@14.4V) 11.5 to 16 VDC (Nominal Voltage 12 VDC) 2A (Low Beam) Actual Power (@14.4V) 29W (Low Beam) Electrical Specifications 2.9A (High Beam) 42W (High Beam) #LEDs Low Beam General Specifications Outer Lens Material / Color Weight Polycarbonate / Clear 3.7 lbs 4.95 lbs (Packaged) Housing Material Die Cast Aluminum Connector Universal Solder Seals 3 High-Power LEDs 7 High-Power LEDs #LEDs High Beam1 Raw2 Output Effective3 Output 5800–6500K (Daylight White) 3,600 lm (Low Beam) 2,651 lm (Low Beam) Nominal Color Temperature Lighting Specifications (see Beam Pattern on Page 2) 9,080 lm (High Beam) 4,485 lm (High Beam) The headlight comes with a universal wiring harness and side mount hardware. Bracket sold sperately. Please refer to our website or call us for fitment instructions. Order Today! © 2024 Custom Dynamics p. 800-222-3400 / f. 800-222-8595 orders@dragspecialties.com
Dimensions 162.9mm (6.41") 80.8mm (3.18") 160.6mm (6.32") 167.9mm (6.61") Shark Demon® 2.0 Universal LED Headlight CD# SD2-HL-W Finish Black Drag# 20012792 Beam Patterns 0m 10m 20m –20m –98ft 0ft 33ft 66ft 0m High Beam Low Beam –30m –10m 30m 50m 100m 150m 200m 250m 300m 164ft 328ft 492ft 656ft 820ft 984ft –66ft –33ft 98ft 0ft 0m 10m 20m –20m –98ft 0ft 33ft 66ft –30m –10m 30m –66ft –33ft 98ft 164ft 328ft 0ft 0m 50m 100m 10m 35m 55m 20m 120m 290m (33 ft) (115 ft) (180 ft) (65 ft) (394 ft) (951 ft) 200 lux 10 lux 1 lux 300 lux 10 lux 1 lux = = = = = = Order Today! © 2024 Custom Dynamics p. 800-222-3400 / f. 800-222-8595 orders@dragspecialties.com
3 Raw Lumens: Maximum calculated light output based on component ratings. 4 Effective Lumens: Actual measured light output considering real-world losses after a specified run time. Long Lifespan LED Technology Specialized for Motorcycle On Road Use DOT Compliant Design The Way to See and Be Seen! 1 Includes LEDs from Low Beam. 2 All values for headlamp pair. High and Low Beam Functions Wide, Ditch-To-Ditch Beam Pattern Gloss Black Aluminum Housings Durable Polycarbonate Clear Lens Engineered in the USA DOT DOT Compliant Lifetime Warranty LIFE Plug ‘n’ Play Raw3 Output (Dual Beam) Effective4 Output (Dual Beam) 5800–6500K (Daylight White) 7,200 lm (Low Beam2) 5,302 lm (Low Beam2) Nominal Color Temperature Lighting Specifications (see Beam Pattern on Page 2) 18,160 lm (High Beam2) 8,970 lm (High Beam2) Operating Voltage (DC) Current Draw (@14.4V) 11.5 to 16 VDC (Nominal Voltage 12 VDC) 4A (Low Beam2) Actual Power (@14.4V) 58W (Low Beam2) Electrical Specifications 5.8A (High Beam2) 84W (High Beam2) General Specifications Outer Lens Material / Color Bracket Mounting Material Weight Polycarbonate / Clear Stainless Steel 7.3 lbs (For the pair) #LEDs Low Beam 14.3 lbs (Packaged) Housing Material Die Cast Aluminum #LEDs High Beam1 Connector DJ7041-1.5-11 6 High-Power LEDs (For the pair) 14 High-Power LEDs (For the pair) Patents Pending Lifetime Warranty Waterproof (IP67 Ingress Protection Rating) 5800–6500K Daylight Color Temperature Effortless Plug ‘n’ Play Installation Brighter than OEM Headlights (More Lumens) Kit includes two lights, mounting hardware, cables, and connectors for installation with OEM equipment only. Please refer to our website or call us for fitment instructions. © 2024 Custom Dynamics p. 800-222-3400 / f. 800-222-8595 orders@dragspecialties.com Order Today! Shark Demon® 2.0 Performance Headlight Kit For Road Glide Motorcycles CD# SD2-RG-WW Finish Black Drag# 20012790 (Replaces OEM# 67700199)
Dimensions 162.9mm (6.41") 80.8mm (3.18") 160.6mm (6.32") 167.9mm (6.61") 10m 40m 70m 10m 120m 400m (33 ft) (131 ft) (230 ft) (33 ft) (262 ft) (951 ft) 200 lux 10 lux 1 lux 400 lux 10 lux 1 lux = = = = = = Beam Patterns 0m 10m 20m –20m –98ft 0ft 33ft 66ft 0m High Beam Low Beam –30m –10m 30m 75m 150m 225m 300m 375m 450m 246ft 492ft 738ft 984ft 1230ft 1476ft –66ft –33ft 98ft 0ft 0m 10m 20m –20m –98ft 0ft 33ft 66ft –30m –10m 30m –66ft –33ft 98ft 246ft 492ft 0ft 0m 75m 150m © 2024 Custom Dynamics p. 800-222-3400 / f. 800-222-8595 orders@dragspecialties.com Order Today! Shark Demon® 2.0 Performance Headlight Kit For Road Glide Motorcycles CD# SD2-RG-WW Finish Black Drag# 20012790 (Replaces OEM# 67700199)
4 Raw Lumens: Maximum calculated light output based on component ratings. 5 Effective Lumens: Actual measured light output considering real-world losses after a specified run time. Long Lifespan LED Technology Specialized for Motorcycle On Road Use DOT (HL) / SAE (FL) Compliant Design The Way to See and Be Seen! 1 Includes LEDs from Low Beam. 2 All values for White headlight. 3 All values for Selective Yellow fog lamp. High and Low Beam Functions Wide, Ditch-To-Ditch Beam Pattern Gloss Black Aluminum Housings Durable Polycarbonate Lenses Engineered in the USA Raw4 Output Effective5 Output 5800–6500K (Daylight White) 3,600 lm (Low Beam2) 2,651 lm (Low Beam2) Color Temperature Lighting Specifications (see Beam Pattern on Page 2) 9,080 lm (High Beam2) 4,485 lm (High Beam2) Operating Voltage (DC) Current Draw (@14.4V) 11.5 to 16 VDC (Nominal Voltage 12 VDC) 2.1A (Low Beam2) Actual Power (@14.4V) 30W (Low Beam2) Electrical Specifications 3.1A (High Beam2) 45W (High Beam2) General Specifications Outer Lens Material / Color Bracket Mounting Material Weight Polycarbonate / Clear / Selective Yellow Stainless Steel 7.3 lbs (For the pair) #LEDs Low Beam 14.3 lbs (Packaged) Housing Material Die Cast Aluminum #LEDs High Beam1 DJ7041-1.5-11 3 High-Power LEDs 7 High-Power LEDs Shark Demon® 2.0 Headlight + Fog Lamp Combo Kit For Road Glide Motorcycles CD# SD2-RG-YW Finish Black Drag# 20012924 Waterproof (IP67 Ingress Protection Rating) Effortless Plug ‘n’ Play Installation Brighter than OEM Headlights (More Lumens) 8,050 lm (Fog Beam3) 2,050 lm (Fog Beam3) 2900–3100K (Selective Yellow) 2.34A (Fog Beam3) 34W (Fog Beam3) 7 High-Power LEDs Connector #LEDs Fog Beam Includes One Headlight and One Fog Lamp Lifetime Warranty Patents Pending Lifetime Warranty LIFE Plug ‘n’ Play DOT DOT Compliant SAE SAE Compliant Order Today! Kit includes two lights, mounting hardware, cables, and connectors for installation with OEM equipment only. Please refer to our website or call us for fitment instructions. © 2024 Custom Dynamics p. 800-222-3400 / f. 800-222-8595 orders@dragspecialties.com
Dimensions 162.9mm (6.41") 80.8mm (3.18") 160.6mm (6.32") 167.9mm (6.61") Shark Demon® 2.0 Headlight + Fog Lamp Combo Kit For Road Glide Motorcycles CD# SD2-RG-YW Finish Black Drag# 20012924 Beam Patterns 0m 10m 20m –20m –98ft 0ft 33ft 66ft 0m High Beam + Fog Beam Low Beam + Fog Beam –30m –10m 30m 50m 100m 150m 200m 250m 300m 164ft 328ft 492ft 656ft 820ft 984ft –66ft –33ft 98ft 0ft 0m 10m 20m –20m –98ft 0ft 33ft 66ft –30m –10m 30m –66ft –33ft 98ft 164ft 328ft 0ft 0m 50m 100m 10m 40m 70m 10m 80m 290m (33 ft) (131 ft) (230 ft) (33 ft) (262 ft) (951 ft) 200 lux 10 lux 1 lux 300 lux 10 lux 1 lux = = = = = = Order Today! © 2024 Custom Dynamics p. 800-222-3400 / f. 800-222-8595 orders@dragspecialties.com
